Creepage vs Clearance for 12/24/40.5 kV Switchgear: Selection and Verification

கடைசியாகப் புதுப்பிக்கப்பட்டது: October 14, 2026.

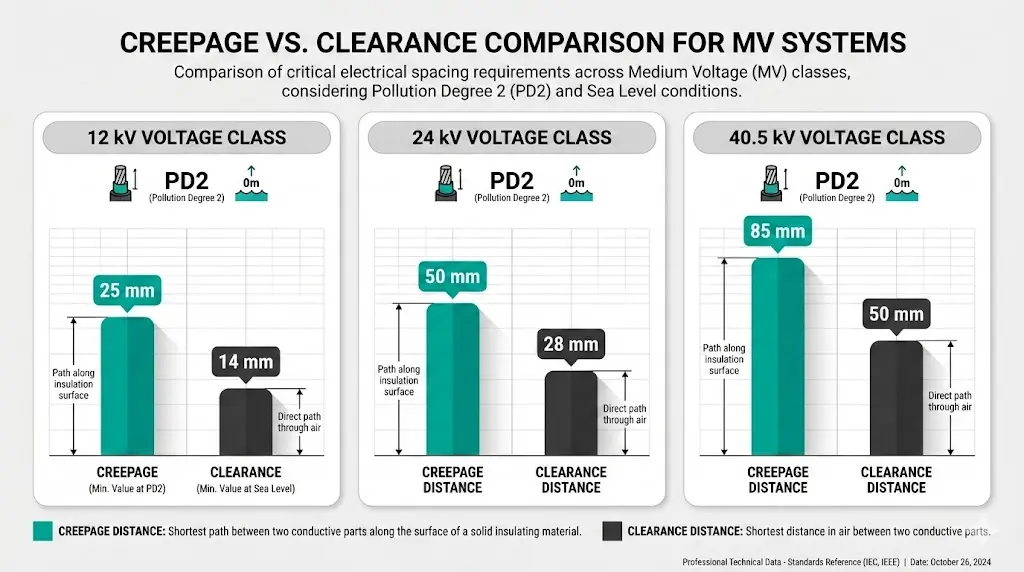

Creepage and clearance in 12 kV, 24 kV and 40.5 kV equipment must be selected as part of the complete insulation design. A voltage class alone does not determine a safe distance in millimetres. The required insulation level, the insulation system, the installation geometry and the service environment all belong in the specification.

This guide explains what to check when selecting medium-voltage insulators or reviewing a supplier’s drawings. It provides a procurement and acceptance framework; final dimensions and test requirements must come from the applicable equipment standard and the manufacturer’s verified design.

Standards scope: IEC 60664-1 addresses equipment connected to low-voltage supply systems, up to AC 1,000 V or DC 1,500 V. Its tables must not be extrapolated into general minimum-distance tables for the primary insulation of 12/24/40.5 kV switchgear.

ஏன் க்ரீபேஜ் மற்றும் கிளீரன்ஸ் ஒன்றுக்கொன்று மாற்றாகப் பயன்படுத்தப்படாது

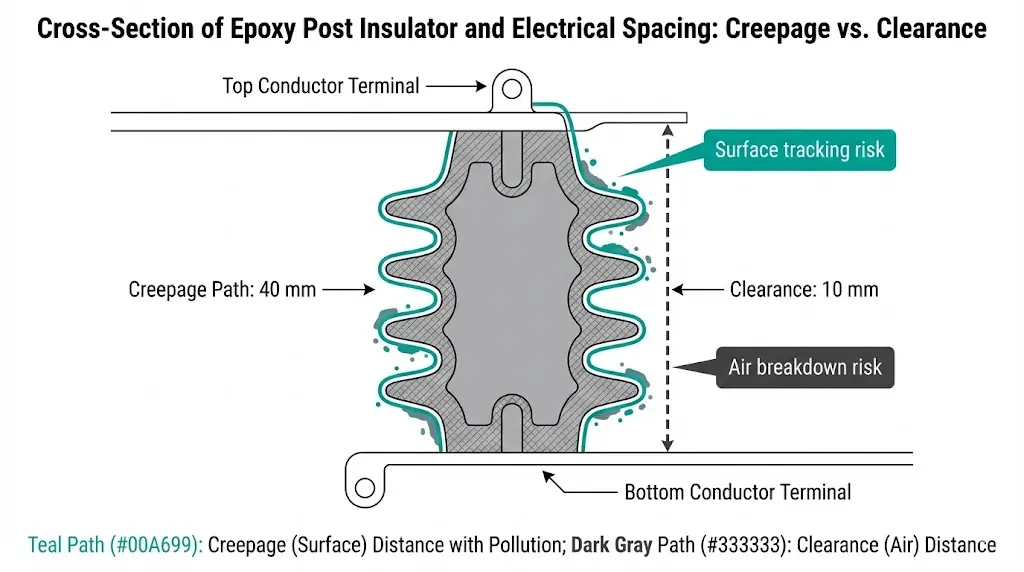

ஊடுருவல் தூரம் follows the insulating surface between conductive parts. அனுமதி is the shortest distance through air between conductive parts. Surface contamination, moisture, insulator profile and material properties influence surface-insulation performance; air insulation also depends on the applied electrical stress, electrode geometry and atmospheric conditions.

Check both paths on the actual assembled equipment. A longer surface path does not establish that the air gap has sufficient dielectric strength. Likewise, an adequate air gap does not establish pollution performance. A vacuum interrupter’s internal insulation does not by itself validate the external insulation around its terminals; see வெற்றிட மின்சுற்றுத் துண்டிப்பான்கள் எவ்வாறு செயல்படுகின்றன.

Creepage Selection for 12/24/40.5 kV Equipment

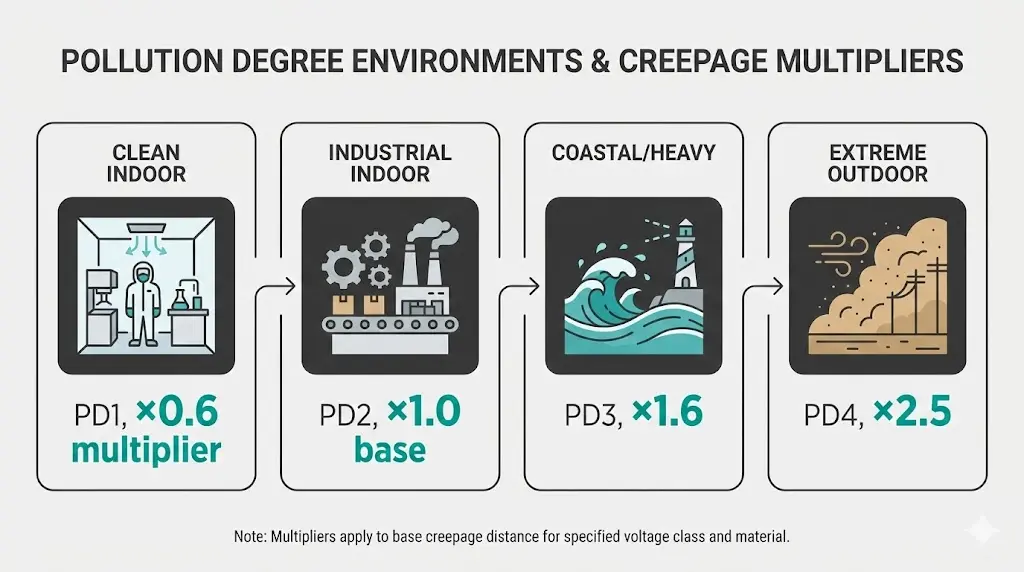

Start with the equipment type and the environment, rather than a universal voltage-to-distance lookup. For outdoor external insulation, IEC TS 60815-1:2025 provides a framework based on site pollution severity and the characteristics of candidate insulators. Its associated parts address different materials and AC/DC applications. An indoor enclosure needs its own assessment of contamination and condensation; an outdoor pollution classification is not automatically a specification for every internal component.

The same checklist applies to 12, 24 and 40.5 kV equipment; the selected insulation levels and dimensions will differ. Do not assign a fixed epoxy material group or a generic pollution multiplier without the relevant material data and design basis.

Clearance and Insulation Coordination

IEC 60071-1:2019 covers selection of withstand voltages for three-phase AC systems with highest equipment voltage above 1 kV. IEC 60071-2:2023 supplies application guidance. These are used with the standard for the equipment being specified, rather than as a substitute for that standard.

For AC switchgear, check ஐஇசி 62271-1 and the relevant product part. For example, ஐஇசி 62271-200 addresses AC metal-enclosed switchgear above 1 kV and up to and including 52 kV. State the editions and amendments required by the project.

1. Identify the electrical duty: equipment voltage, system earthing, relevant overvoltages and the insulation path.
2. Specify the rated insulation level: record applicable power-frequency and impulse withstand requirements, including any distinct isolating-distance requirements.
3. Review the complete arrangement: conductors, fasteners, barriers, cable terminations and neighbouring earthed metal can affect the shortest gap.
4. Verify the proposed construction: request drawings and test evidence that apply to the offered configuration.

Altitude: IEC 62271-1 identifies altitude correction provisions above 1,000 m. Give the manufacturer the actual installation altitude and require confirmation of the applicable correction and resulting equipment rating. A correction to a withstand requirement must not be treated as an identical percentage increase in every physical gap. See also our high-altitude switchgear overview.

Common Specification Mistakes and How to Resolve Them

Mistake 1: Treating Operating Voltage as the Complete Insulation Requirement

For a balanced three-phase system, phase-to-neutral operating voltage is line-to-line voltage divided by √3. That relationship alone does not establish the required phase-to-earth withstand level. System earthing, temporary overvoltages and the equipment standard must also be considered. Record the insulation path and required withstand level explicitly when reviewing வெற்றிட மின்சுற்று முறிப்பான் மதிப்பீடுகள்.

Mistake 2: Omitting Environmental Conditions from the RFQ

“Indoor use” can describe a clean controlled room or a humid, dusty enclosure. Provide site altitude, temperature range, contamination, condensation exposure and installation orientation. Ask the supplier to state the assumptions behind the proposed creepage distance and any enclosure controls or maintenance measures on which the design relies.

Mistake 3: Making Unverified Field Changes

If the installed arrangement differs from the approved drawing, document the discrepancy and obtain the equipment manufacturer’s disposition before energization. Do not assume that adding a coating, changing a barrier or fitting a higher-voltage component validates the assembly. Such changes can alter electric-field distribution, interfaces and the applicability of existing test evidence.

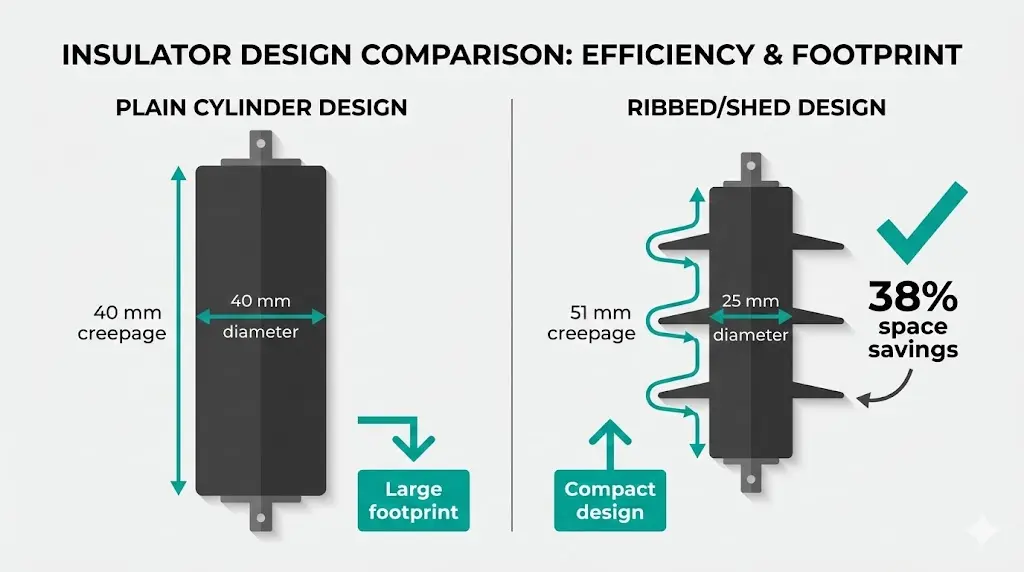

Ribs and Sheds: Review the Profile, Not Just the Path Length

Ribs and sheds can lengthen the surface route between terminals, but geometric length is only one part of pollution performance. Profile, spacing, orientation, material and wetting conditions matter. For outdoor high-voltage insulators, use the applicable IEC 60815 selection process and the manufacturer’s evidence for the proposed profile.

Do not convert an insulator’s diameter into creepage distance or count arbitrary ribs using a universal shortcut. Request a dimensioned drawing showing the measured path and its endpoints. When comparing சுவிட்ச் கியர் பாகங்கள், check mounting compatibility and the surrounding clearance as well as the insulator’s standalone dimensions.

ஏற்றுக்கொள்ளும் சோதனை மற்றும் கள சரிபார்ப்பு

Prepare an inspection and test plan before delivery. Dimensional inspection and dielectric testing provide different evidence; neither replaces the other. Physical access and measurements inside medium-voltage equipment require qualified personnel, isolation, verification of absence of voltage and the applicable grounding and site procedures.

• Document review: match the supplied model, drawing revision, insulation level and environmental limits to the order.
• Dimensional review: confirm the specified creepage paths and critical clearances in the assembled configuration, including terminals, bolts and barriers.
• Condition review: check for transport damage, contamination, cracks and incorrect assembly before testing.
• Test review: agree the required factory and site tests, test voltages, durations and acceptance criteria under the applicable product standard and manufacturer’s instructions.
• Partial-discharge testing, where specified: IEC 60270:2025 describes charge-based measurement methods. The test circuit, calibration, test conditions and acceptance limits must suit the apparatus. A single generic pC threshold cannot diagnose every creepage or clearance defect.

What a Complete Insulation Specification Should Contain

A useful specification connects the system duty to the equipment insulation level, environmental conditions, approved dimensions and verification evidence. Require the supplier to identify those items together. That makes competing 12/24/40.5 kV offers comparable without relying on an unsupported minimum-distance table.

FAQ: Creepage and Clearance

Q1: What is the difference between creepage and clearance?

Creepage follows an insulating surface; clearance is the shortest air gap. Both must satisfy the relevant design requirements. There is no universal ratio between them for medium-voltage equipment.

Q2: Can IEC 60664-1 provide the primary-insulation distances for 12 kV switchgear?

No. Its low-voltage scope does not provide a basis for extrapolating a 12 kV primary-insulation table. Use the applicable medium-voltage equipment and insulation-coordination standards.

Q3: Is a higher-altitude installation covered by the standard catalogue rating?

Confirm the catalogue’s stated service conditions. Supply the actual altitude and request the manufacturer’s documented rating and insulation assessment for that site.

Q4: Can phase-to-earth and phase-to-phase distances be calculated by a fixed √3 ratio?

No. The operating-voltage relationship does not replace the required withstand levels or the geometry assessment for each insulation path.

Q5: Will a coating fix insufficient creepage?

Do not assume it will. Material compatibility, application quality, ageing, pollution performance and the effect on the equipment’s verified design require manufacturer evaluation.

Q6: Do more sheds always mean a better insulator?

No. Compare the profile’s suitability for the environment and its verification evidence, as well as its surface length and mechanical interfaces.

Q7: What should I send with an insulator enquiry?

Send the equipment voltage and insulation level, installation drawing, insulation-path endpoints, site altitude and environment, material/interface requirements, and the specified standards and tests.
