Switchgear Parts RFQ Template Buyer Guide 2026

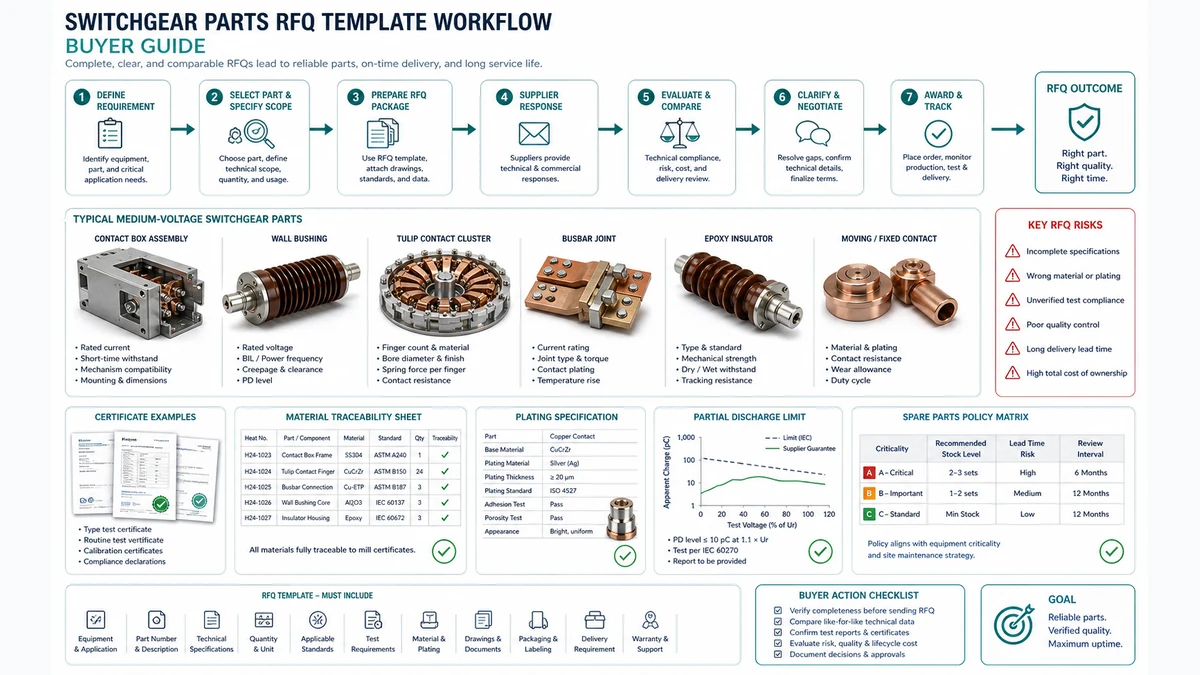

Procuring replacement or spare switchgear components without a structured request-for-quotation document is one of the most reliable ways to receive non-conforming parts, miss lead times, or accept material substitutions that compromise dielectric integrity. This guide assembles every element a procurement or engineering team needs to build a defensible switchgear parts RFQ template – from material and partial discharge clauses through plating specifications, traceability requirements, spare parts policy, supplier matching, and bid validation.

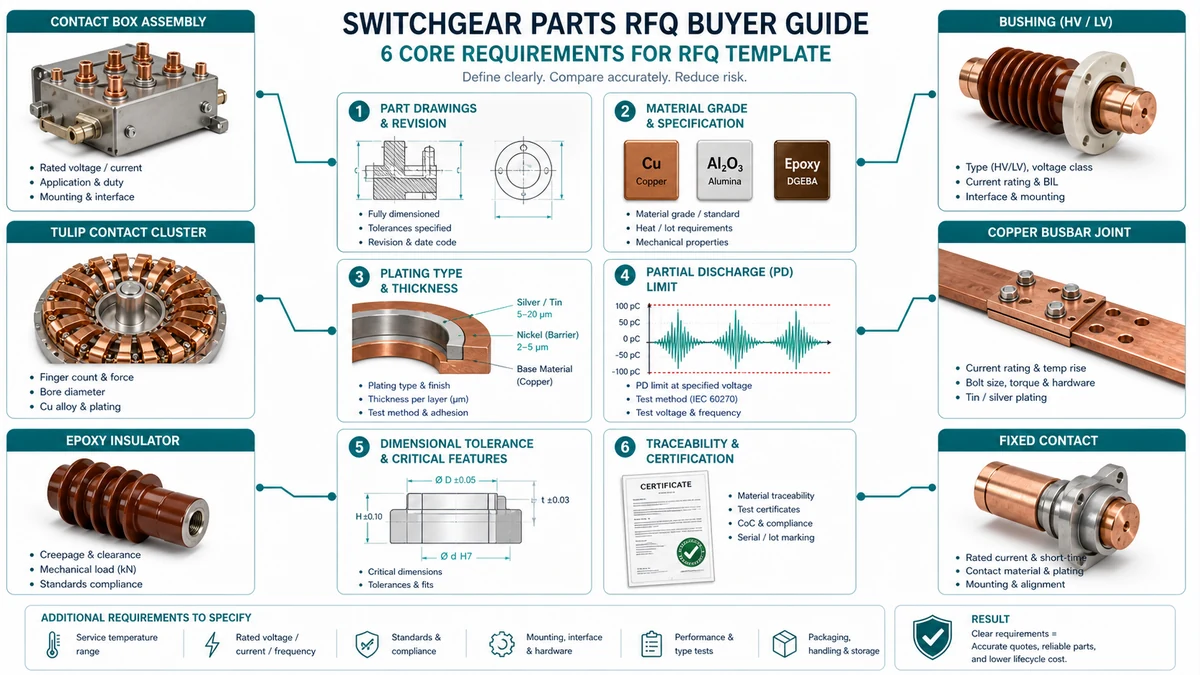

What a Switchgear Parts RFQ Template Must Include

A switchgear parts RFQ template is a structured document that defines the technical, commercial, and compliance requirements a buyer communicates to suppliers before receiving a quotation. Without a complete template, suppliers quote incompatible material grades, omit test certificates, or misinterpret dielectric limits.

1. Part identification and interchangeability data – OEM part number, drawing revision, applicable switchgear type and rated voltage class, and any superseding cross-references.
2. Material specification – Base metal alloy designation, minimum mechanical properties, and restriction-of-substances compliance (RoHS, REACH). Material ambiguity is the single most common source of field failures in aftermarket switchgear parts.

How to Specify Material and Partial Discharge Limits

A switchgear parts RFQ template that omits precise material grades and PD thresholds forces suppliers to quote against assumptions, producing mismatched components, hidden substitutions, and post-delivery disputes.

Material Specification by Functional Category

Current-carrying conductors – Specify alloy designation, temper, and minimum conductivity together. Stating “copper” is insufficient; C11000 (electrolytic tough pitch, 100% IACS minimum) and C10200 (oxygen-free, 99.95% IACS minimum) behave differently under cyclic thermal loading. For busbars rated above 1,600 A, CuCrZr (CW106C) reduces creep at joint interfaces.
Insulating structures – Cast epoxy, SMC, and DMC all appear in medium-voltage switchgear but are not interchangeable:

Partial Discharge Limits: Setting Acceptance Criteria That Mean Something

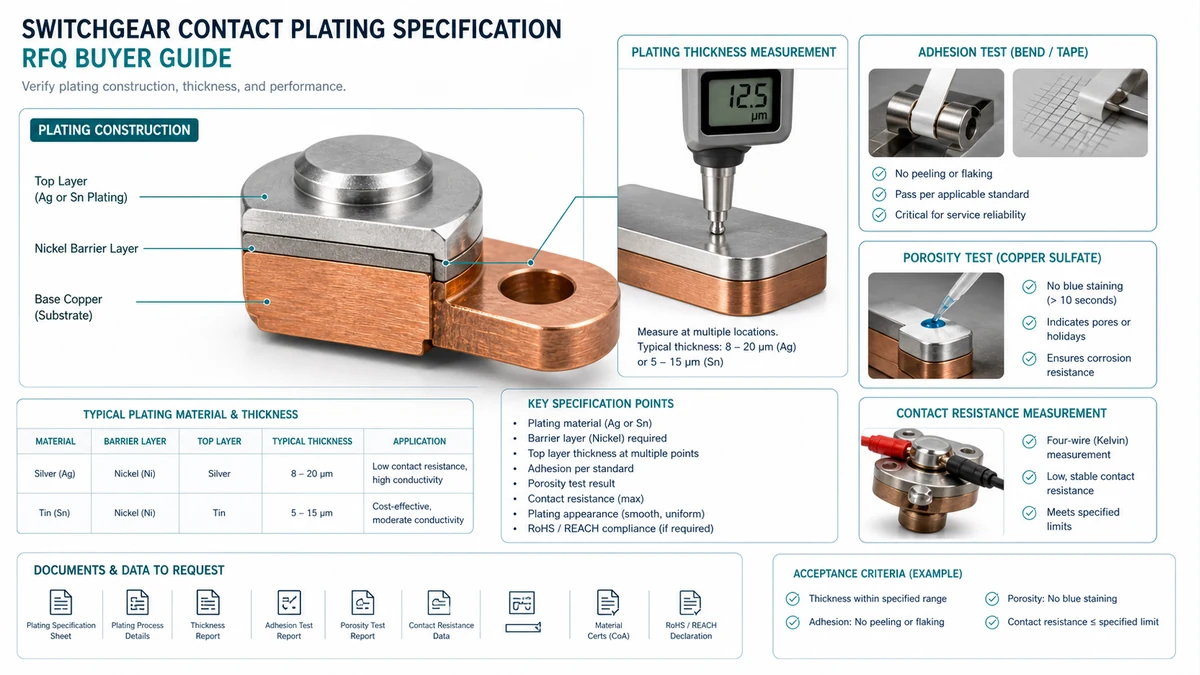

Plating Specifications for Switchgear Contact Parts

Plating failures on switchgear contact parts rarely appear at incoming inspection – they show up later as elevated contact resistance, micro-arcing, or thermal runaway. The root cause is usually an RFQ clause that stated a finish type without specifying thickness, substrate preparation, adhesion requirement, or porosity limit.

Why Generic Plating Callouts Fail

The Five Required Fields in Every Plating Clause

Field 1 – Base metal and surface condition: State substrate alloy and required pre-plate surface finish. Example: Substrate: C11000. Pre-plate surface finish: Ra <= 0.8 micro-m. No burrs, pits, or porosity visible at 10x magnification prior to activation.
Field 2 – Barrier layer: Nickel barrier: Required. Electroplated per ASTM B689. Minimum thickness 2.5 micro-m, maximum 5.0 micro-m.

Inspection Sampling Plan

Contact Resistance Functional Gate

Traceability Requirements: What Buyers Must Demand

Traceability failures are a leading cause of counterfeit parts entering switchgear assemblies. A part lacking a documented chain of custody from raw material to delivery cannot be verified, recalled systematically, or used to support root-cause analysis after a failure event.

Quick Diagnosis: Traceability Gap Assessment

Tools and Acceptance Sources for Traceability Verification

The Four-Layer Traceability Framework

Layer 1 – Material Origin: Suppliers must provide mill certificates traceable to the heat or lot number. Accept nothing that references only a material grade without a specific heat number.
Layer 2 – Manufacturing Process Records: Required documents include works order with date and operator identification, plating bath records (chemistry, temperature, current density, thickness), heat treatment records where applicable, and dimensional inspection reports tied to the same job number.

Supplier Traceability Risk by Category

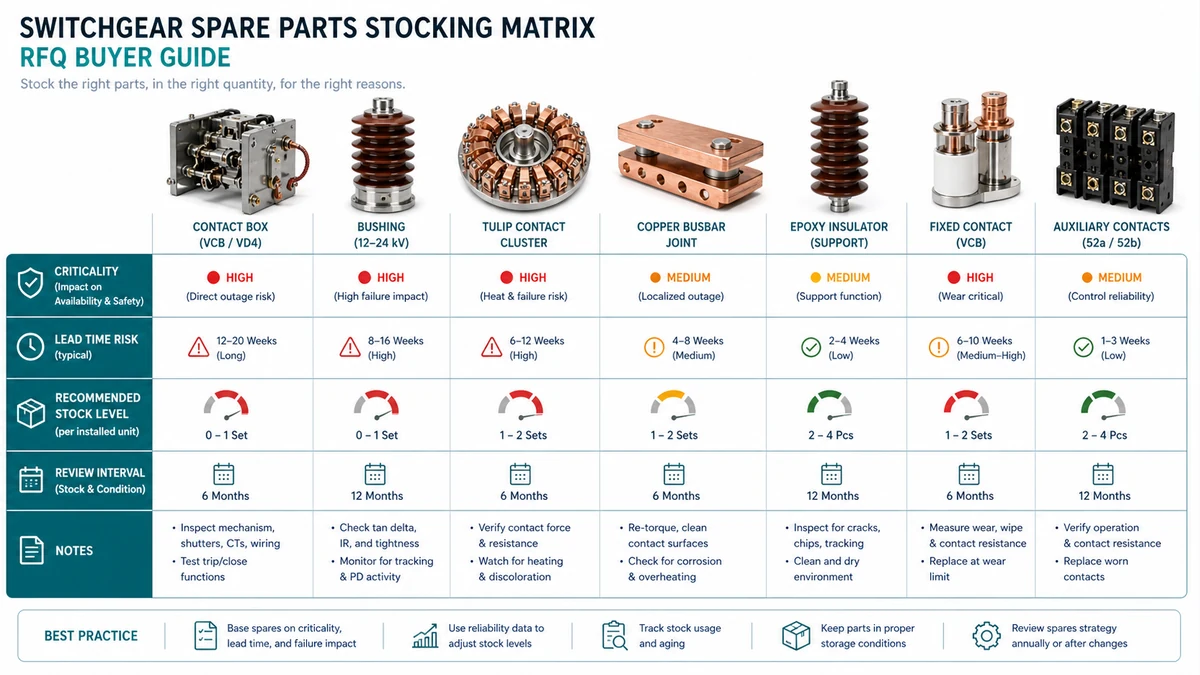

Spare Parts Policy: Converting Field Risk Into Stock Commitments

A spare parts policy written into the RFQ template before vendor selection prevents the most common post-commissioning failure: discovering that a critical vacuum interrupter or trip coil carries a 16-week lead time only after an unplanned outage has started.

Field Scenario: Vacuum Interrupter Lead Time Discovery

Step 1: Classify Parts by Failure Consequence and Lead Time

Step 2: Apply Field Condition Multipliers

• High switching duty (> 500 operations/year): Multiply contact-wear consumables by 1.5x.
• Coastal or high-humidity environments (> 85% RH, salt-laden air): Add one additional set of insulating components.

Step 3: Define Storage Conditions

Step 4: Specify Replenishment Triggers

Step 5: Address Obsolescence Explicitly

Matching Suppliers to Your Voltage Class, Environment, and Lead Time

Sending a well-structured RFQ to the wrong supplier pool produces quotes that cannot be compared, lead times that will be missed, and parts that fail qualification at incoming inspection.

Step 1: Classify Requirements Before You Search

Voltage class: Medium-voltage parts (1 kV-36 kV) demand PD testing and dielectric traceability that most low-voltage distributors cannot support. If the RFQ mixes voltage classes, segment it into separate packages.
Environment category:

Step 2: Screen Suppliers Against Capability Gaps

Step 3: Structure the RFQ Submission Package

Step 4: Evaluate Responses Using a Scored Matrix

Validating a Returned RFQ Response: Acceptance Review Checklist

A returned RFQ response is not automatically a valid bid. Apply the checklist below before price comparison begins.

Section 1: Material Conformance

Section 2: Partial Discharge and Dielectric Data

Section 3: Plating and Surface Treatment

Section 4: Traceability Documentation

Section 5: Spare Parts and Lead Time Commitments

Related XBRELE Engineering References

Use these XBRELE references to connect the field decision to the correct product, test, and procurement workflow: XBRELE product page, XBRELE vacuum circuit breaker range, VCB ratings guide, VCB FAT/SAT acceptance checklist.

Standards Context

For external method context, compare the site procedure with the public IEEE C37.09 standards page and then apply the exact OEM manual and project specification for the supplied equipment.

Field Example

Field example: during a service inspection, one phase measured outside its commissioning baseline while the other two phases remained stable. The team repeated the measurement with verified leads, checked timing and contact travel, and used the measured divergence to separate a contact-pressure problem from a generic surface-cleaning issue.

Frequently Asked Questions

What should a switchgear parts RFQ template include as mandatory fields?

A switchgear parts RFQ template should require material grade, drawing revision, voltage class, rated current path, partial discharge limit, plating type and thickness, test standard, traceability certificate type, spare policy, packaging requirement, and delivery lead time. Missing any of these fields turns supplier comparison into a price-only exercise instead of a technical qualification.

What is the minimum PD acceptance limit for medium-voltage switchgear components?

For many solid-insulation assemblies in 12-36 kV switchgear, buyers commonly specify <= 5 pC at the defined test voltage, measured per IEC 60270. The exact value must follow the project specification, component type, insulation system, and end-user standard.

Which plating standard applies to silver-plated switchgear contacts?

Silver plating for electrical contacts is commonly specified with ASTM B700 or an equivalent recognized plating standard. The RFQ should state minimum thickness, barrier layer requirements, adhesion test, porosity acceptance, and whether rack plating or barrel plating is acceptable for the contact geometry.

Which traceability certificate is acceptable for primary current path components?

For primary current path components, specify EN 10204 Type 3.1 or an equivalent certificate that links material grade, heat number, test result, and production lot. A generic certificate of conformity is not enough when the part affects temperature rise, contact resistance, insulation coordination, or long-term spare interchangeability.

How should spare parts quantities be defined in an RFQ?

Use a consequence and lead-time matrix. A process-critical contact box, bushing, interlock, or tulip contact with an 8-14 week lead time may justify two units on site plus a supplier frame agreement.

What is the difference between PDIV and PDEV in switchgear parts testing?

PDIV is the partial discharge inception voltage where discharge first appears during a rising voltage test. PDEV is the partial discharge extinction voltage where discharge stops during a falling voltage test.
